Hatch

09/03/08

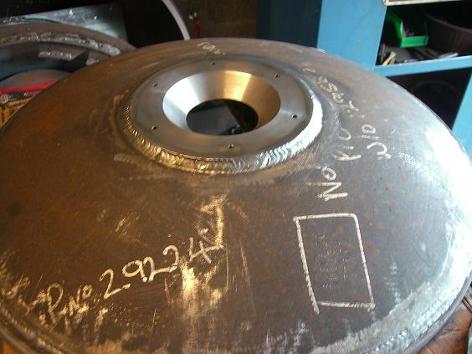

Here is the final weld on the hatch viewport.  I did 2 root runs, one from either side and then the final runs on both sides.  I did these in runs of about 100mm, one on either side and then let it cool down slowly.  I don't think there is any distortion.  I’ve also given the port a coat of zinc primer now to protect it from surface rust until grit blasting time.
