Hatch

25/02/08

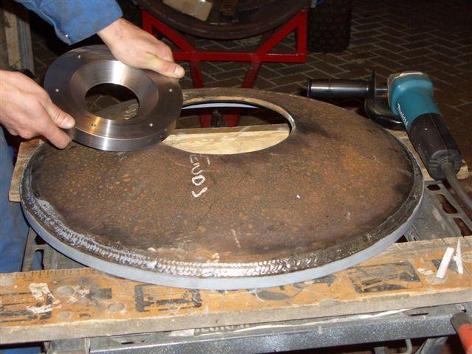

I have cut the hole for the hatch port and ground the edge to about a 60 degree angle on both sides.  Again, I’ve left a fairly large gap (about 2mm) for weld penetration.  The dish is 10mm thick and this took a fair bit of grinding.  The port is set in 3/8ths on centre line and its actually tacked in now and I have begun the root runs.
