Endcaps |
|
15/05/10 |
|

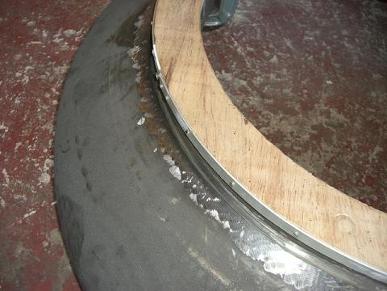

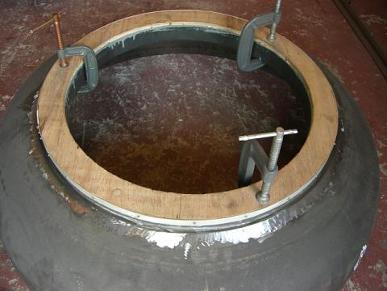

It’s a bit difficult to see in these pictures but I backgouged all the way around to meet the inside weld. This is to ensure that I get 100% penetration on the weld. I had not really cut the hole for the ring big enough so I really had a lot of grinding to do. I did buy some gouging nozzles for my cutter which probably would have been quicker but they haven't arrived yet, so I just got on with it the old fashioned way. Its awkward to see but I think the gouge is about 10mm deep. This was because I didn't leave enough of a gap and so was forced to grind deep. It took pretty much all day. However, once done I was pleased with the results and it was easy to weld. |
|
